Zinger Power Wheelchair

A lightweight power mobility chair with 2-handed throttle steering. Turns on a dime, works indoors and out and weighs just 47 pounds. Comes with a convenient travel basket.

Totally Unique Dual Lever Steering

• The Zinger is a not a scooter or a power chair, it is a personal electronic vehicle.

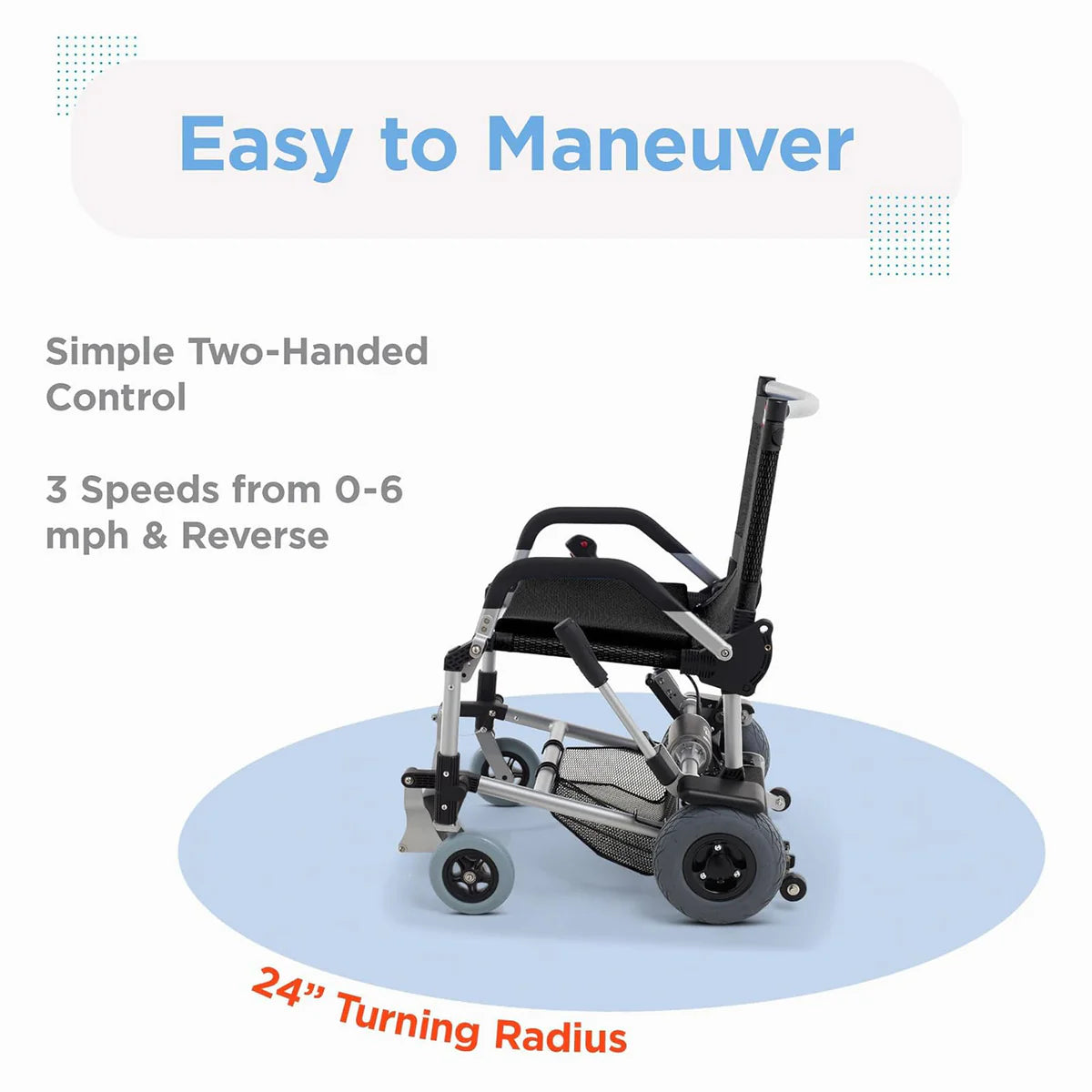

• Dual lever driving like a zero-turn lawn mower is ultra-responsive and nimble.
• 3 speed settings – 0-1 mph/0-3 mph/0-6mph; Reverse – 0-1mph.
• The 24” turning radius turns on a dime, 50% smaller turning radius than other chairs.
• Drives on almost any surface, indoor or outdoor (grass, dirt, small gravel okay).

Lightweight

• Only 47 pounds with the battery (42 lbs. without) compared to power chairs that weigh 100+ lbs.

ADA Friendly – Comfortable

• At 25” wide Zinger fits through all standard ADA door frames of 32”.
• Can drive up all ADA compliant ramps of 5 degrees and up to 10 degrees if needed.
• Both armrests fit below ADA compliant tables and desks; arms can also be removed/adjusted.
• Foam set cushion and mesh.

Portable

• Easy folding with a single pull release cable; once folded, it fits into the backseat or trunk of a car and can be wheeled like a piece of luggage.
• Comes assembled, never has to be disassembled.
• Swing-away footplate so you can exit safely and easily.
• Can be manually pushed when chair is not electronically engaged.

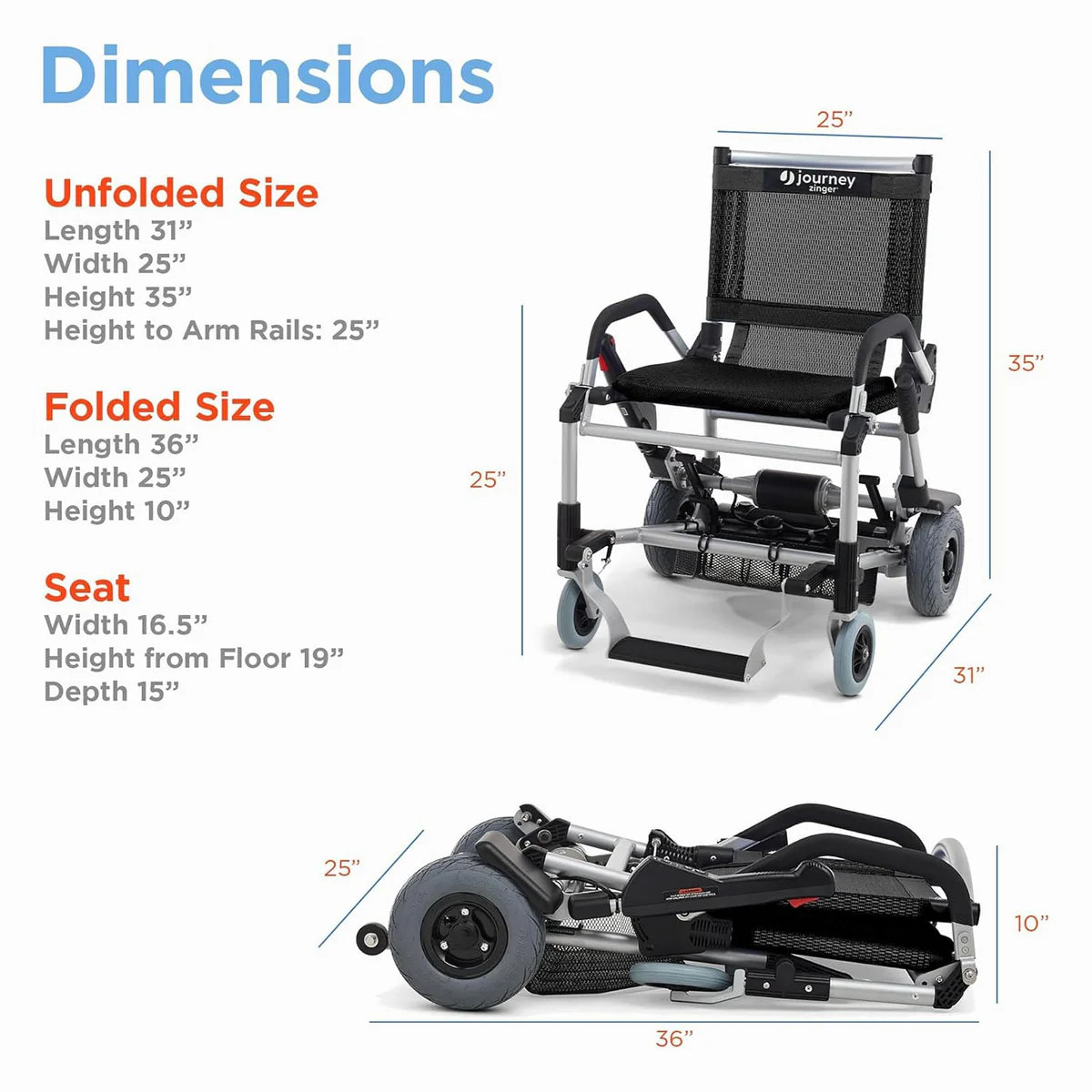

• Zinger size: 31” long x 25” wide x 35” high (Folded size: 10”x 25”x 36”).
• Seat size: 16.5 wide x 15” deep.

Travel

• FAA Approved – can be used in airports until you board the plane. Battery is carried on, while the Zinger is treated like oversized luggage at the gate as you board.
• Travelling up to 6 mph means you can keep up with friends as you use your Zinger.

Safety

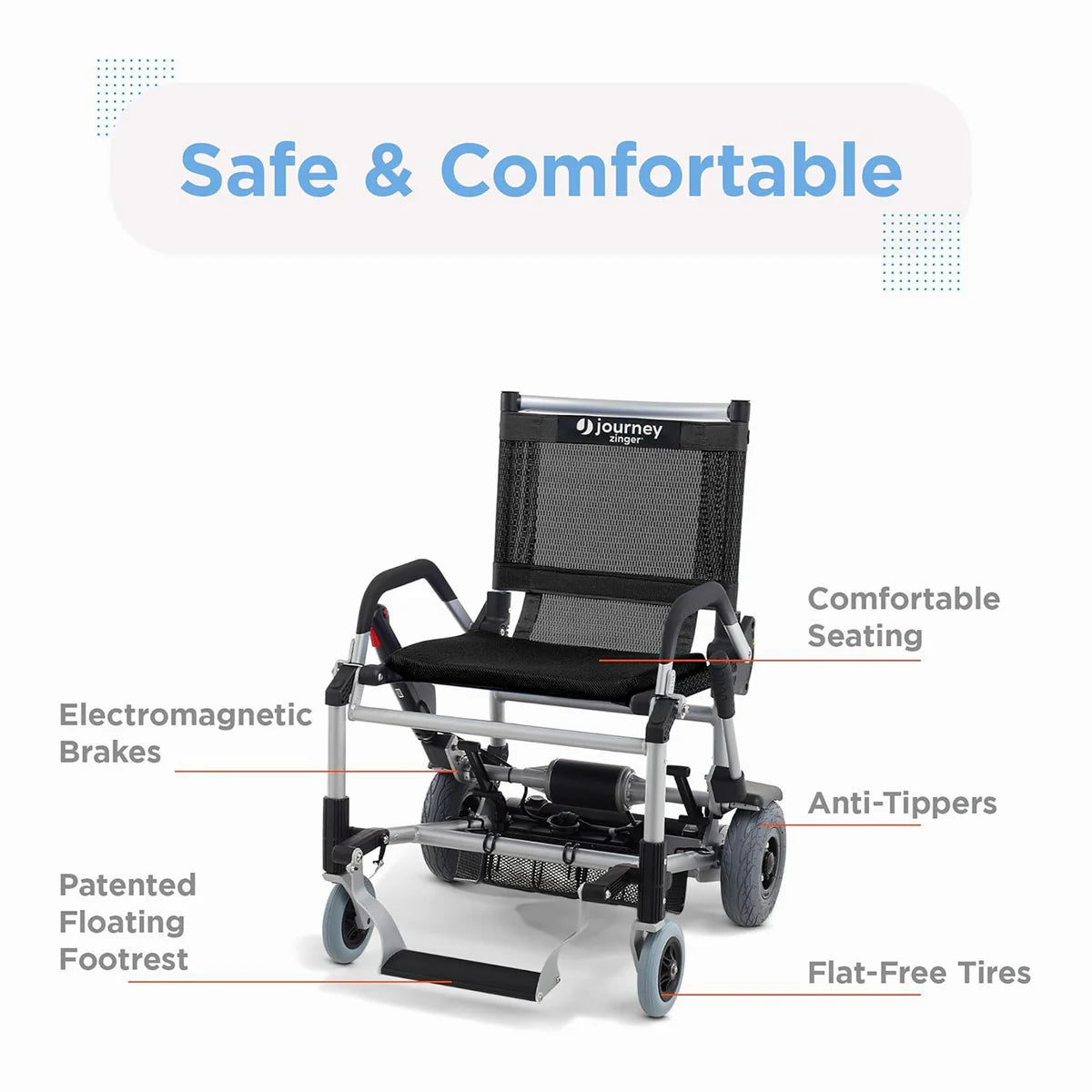

• Rear Anti-Tip wheels for additional stability while going over bumps or inclines.

Battery

• Rechargeable Panasonic brand 36V 6.6Ah Lithium-Ion battery, suitable for 110/220V outlets.
• 8 miles of use on a single charge (contingent on weight capacity), charges in 4 hours or less.
• Battery can be charged installed in or out of the chair; battery is self-contained with charging port on the battery itself.
• Includes anti-theft keys for battery.

ITEMS

• Black - 8300BLK
• Blue - 8300BLU

SPECIFICATIONS

• Dimensions
  • Height with Armrests: 25"
  • Length: 29.13"
  • Width: 25"
• Folded Size
  • Height: 10"
  • Length: 35.43"
  • Width: 25"
• Seat Size
  • Height (from floor): 18.90"
  • Depth: 13"
  • Width: 16.92"
• Weight With Battery: 47.40 lbs (without basket)
• Weight Without Battery: 43.45 lbs
• Overall Weight: 49 lbs (with basket)
• Weight of Battery: 5 lbs
• Weight Capacity: 275 lbs maximum capacity
• Package Dimensions
  • Height: 10.82"
  • Length: 39"
  • Width: 27.75"
• Packaging Weight: 56.20 lbs
• Speed Range
  • Low: 0-1 mph (1.6 km/h) for indoors on smooth floors
  • Medium: 0-3 mph (5 km/h) for outdoors walking pace
  • High: 0-6 mph (9.5 km/h) for hill climbing or mowed grass
  • Reverse: 0-1 mph (1.6 km/h)
• Max Climbing Angle: 10° (ADA-compliant wheelchair ramps are 5° max)
• Rotation (turning) Radius: 24" (610 mm)
• Frame: Aircraft grade aluminum and nylon composite
• Motor: DC 36V, 250W, 7A
• Battery: 36V, 6.6Ah, lithium-ion 4lb (1.8kg) highest quality cells
• Charger: 2.1A, automatic, input 100-240V, charge time 4 hours or less
• Steering/Braking System: Two lever controls (hardened steel on tire brake/knurled roller on tire drive)
• Armrests: Attached in factory.and easily removed with the included hex key
• Front Wheels: 6" non-marking flat-free wheels
• Rear Wheels: 9" non-marking air-filled provides softer ride
• Anti-Tip Wheels: 50mm PU solid
