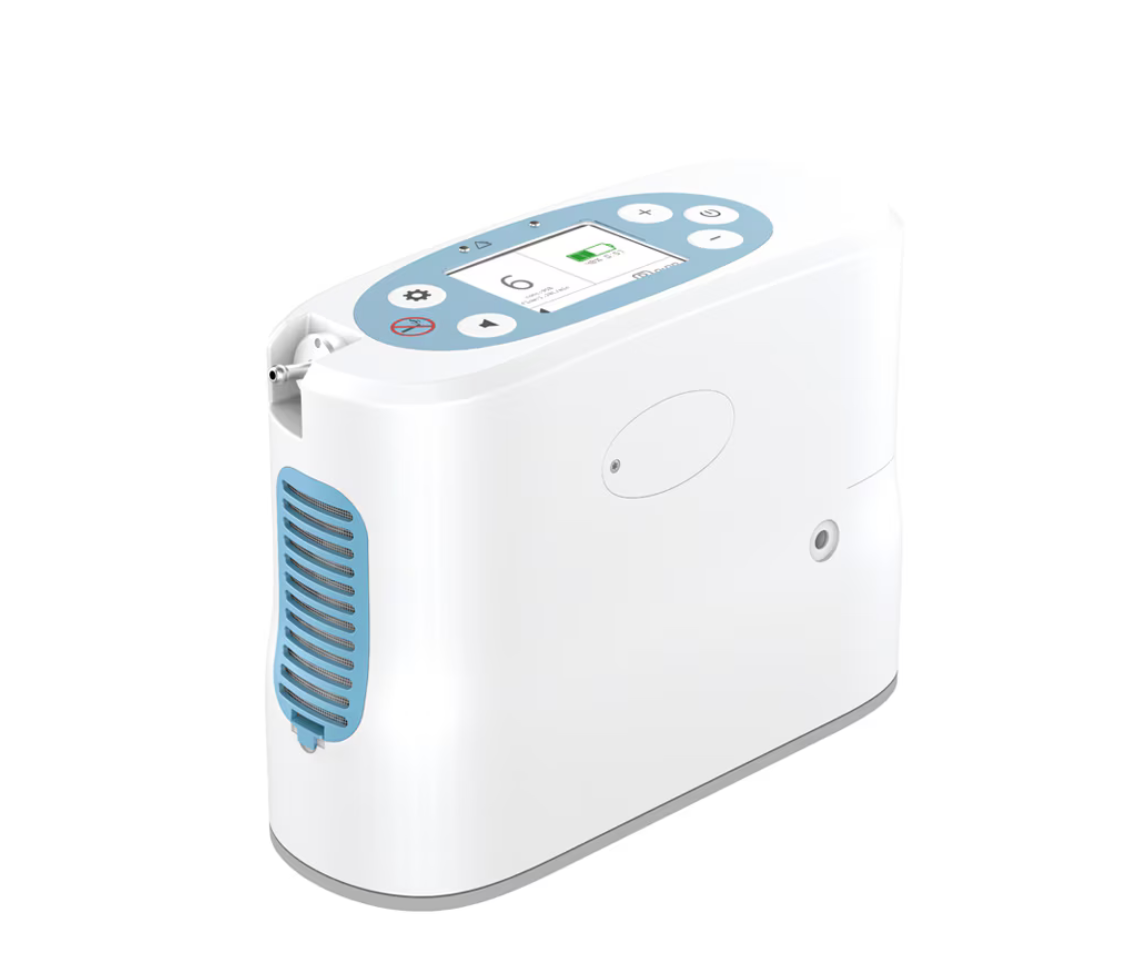

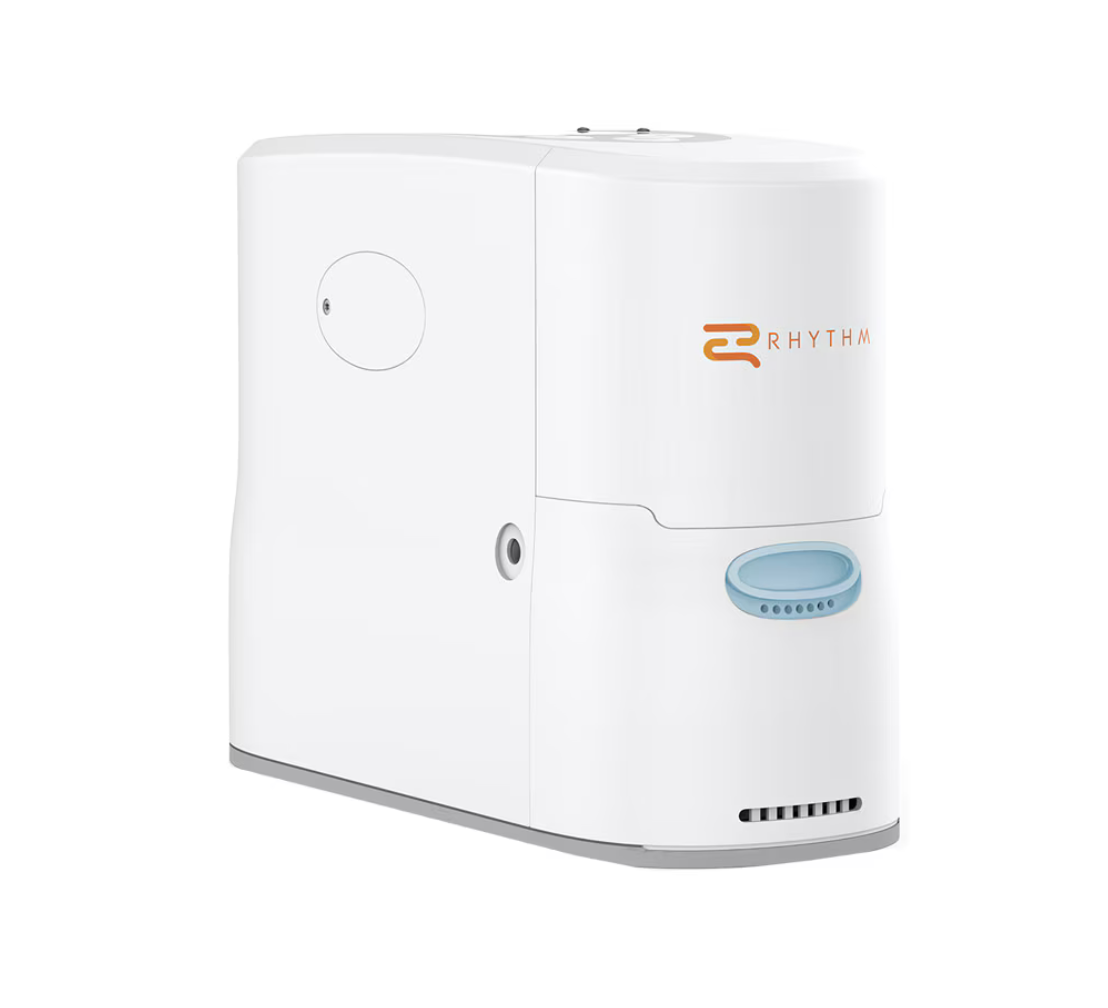

P2-E6 Portable Oxygen Concentrator

• Compact & Lightweight.
• Battery Duration up to 5.4 hours on Setting 1.
• High Efficiency, Low noise. Excellent Heat Dissipation.
• High Adsorption Sieve Bed.
• Includes AC/DC Car Charger.
• Conforms to all applicable FAA compliant criteria for POC carriage and use on board aircraft.

Specifications:
Size: 8.7” x 3.4“ x 6.3”
Weight: 4.37lbs
Warm up time: 2 Minutes
Settings: Six Flow Settings (1-6)
Oxygen Concentration: 90%-3%/+6%

Oxygen Concentration Sensors
• Low oxygen concentration < 87%
• Incorrect concentration: < 50%
• Concentration sensor error alarm

Alarms
• Power failure/ High and low temperature
• Low oxygen concentration/ Low battery
• High and low pressure /Sieve bed replacing

AC Power Supply: Input 100-240v, 50-60hz (auto sensing to allow for worldwide use)

DC Power Supply Input: 11-16V, Output 19V 6.3A
Rechargeable Battery: 14.4V
Battery Rated Capacity: 6.7Ah
Display Screen: 2.8”
Battery: 6700mAh, duration up to 5.4 hours on Setting 1.
Approx. 4 hours charge time with AC.
Operation: Simple control functions and easy-to-read LCD display
Use: Designed for 24/7 use

SKU P2-E6


Manual | Spec Sheet | Quick Start Guide | Trifold Brochure | Brochure | Bench Test  |  Patient FAA Air Travel Compliance Letter
