FR GDX

COMFORT + RANGE

A Great, Deluxe Crossover mobility scooter. Its distinctive the appearance gives the impression that you are riding in an SUV-like mobility scooter.

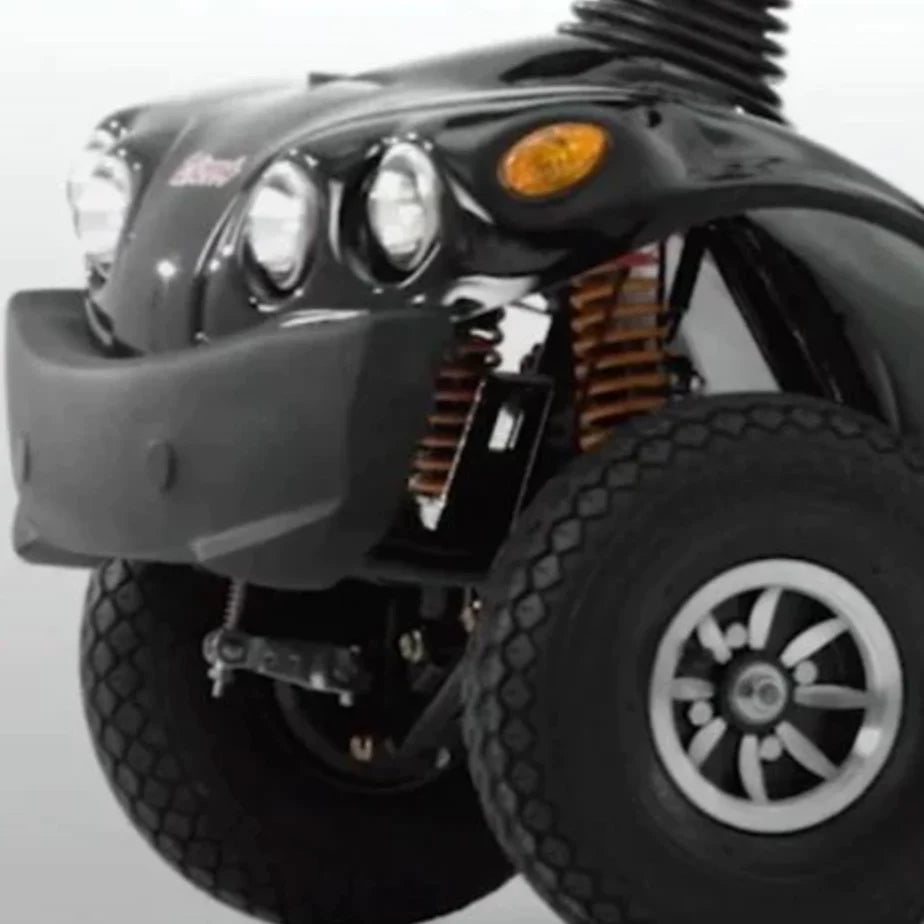

The double wishbone suspension system offers a number of advantages over other suspension systems, including improved handling, stability, comfort, traction, alignment, and tunability.

SKU #s

• 36AH
• 50AH

Longer rear swing arm advantage..

• Better Stability: A longer A-arm suspension system offers better stability by increasing the distance between the pivot points of the A-arms. This increased distance helps to reduce the lateral movement of the suspension system and keep the wheels more upright, which can improve handling and reduce body roll during cornering.
• Improved Suspension Travel: A longer A-arm suspension system offers increased suspension travel, which can help to absorb larger bumps and rough terrain more effectively. This improves overall ride comfort and reduce the risk of bottoming out.
• Enhanced Traction: A longer A-arm suspension system improves traction by keeping the tires in better contact with the road surface. The longer arms will help to maintain better tire alignment and contact patch during acceleration, braking, and cornering, which can improve overall grip and handling.
• Reduced Wear and Tear: A longer A-arm suspension system reduces wear and tear on the suspension components and tires by spreading out the load more evenly across the suspension system. This helps to extend the lifespan of the suspension system and reduce the frequency of maintenance and replacement.

Specifications

• Delta Tiller With Angle Adjustment Capabilities
• Regenerative Electromechanical Braking System
• Front and Rear Suspension System for an Ultimately Smooth Ride
• 79 AGM Battery with Optional 110 AH Battery
• Fully Padded, Heavy Duty Armrests for Ideal Comfort
• 4 - `3” Pneumatic All-Terrain Tires
• 29” Width, 60” Length
• Speed Capabilities up to 9.6 mph
• Impressive Ground Clearance of 6.4”
• Turning Radius of 80”
• Overall Range of Up To 55 Miles When Enabled with 110 AH Battery
• Weight Capacity of Up to 500 lbs.
• Swivel and Slide Captain’s Chair

Capacity

• Up to 500lbs
• 80" Turning Radius
• 6.4" Ground Clearance
• Up to 55 Miles Range with [110AH]
• 13' Front and rear pneumatic tires
• 3 Height Positions

Equipment

• Adjustable swivel captain seat
• Delta Steering
• LED Battery Meter
• Full length heavy-duty armrests
• 3 Independent breaking systems
• Front and rear lights
• 1 front basket, and 2 rear mirrors

Power Features

• Front and Rear Supsenion
• Regenerative Braking System
• 79 AGM battery; or 110 AH battery
• 24 V8A, 100-240V Offboard charger
• USB Ports on tiller
• Speed adjustment dial

Warranty

3 YEAR LIMITED WARRANTY ON STRUCTURAL FRAME
LUGGIE or FREERIDER branded electric scooter structural frame is warranted for a period of thirty-six (36) months from the date of original purchase by the
original owner/user. Luggie Scooter Inc. will repair or replace at our sole discretion to the original purchaser if the structural frame upon examination by an
authorized Luggie Scooter, Inc.’s representative to be defective in material and/or workmanship within the warranty period.

1 YEAR LIMITED WARRANTY ON MOTOR, TRANSAXLE, BRAKE ASSEMBLY AND ELECTRICAL COMPONENTS
LUGGIE or FREERIDER branded motor, transaxle, brake assembly and electrical components are warranted for a period of twelve (12) months from the date of
original purchase by the original owner. Luggie Scooter will repair or replace at our sole discretion to the original purchaser if the motor, transaxle, brake and/or
electronics of the scooter upon examination by authorized Luggie Scooter, Inc.’s representative to be defective in material and/or workmanship within the
warranty period.

1 YEAR LIMITED WARRANTY ON LITHIUM BATTERY/BATTERIES*
LUGGIE branded electric scooter’s new lithium battery is warranted for a period of twelve (12) months from the date of original purchase by the original owner.
Luggie Scooter will repair or replace at our sole discretion to the original purchaser if the battery and/or batteries of the Luggie scooter upon examination by
authorized Luggie Scooter, Inc.’s representative to be defective in material and/or workmanship within the warranty period.

30 DAYS LIMITED WARRANTY ON ALL PLASTIC PARTS & CHASSIS HOOKS
LUGGIE or FREERIDER branded electric scooter’s plastic parts (tiller clamp, chassis hooks, trigger, tiller lever, etc.) are warranted for a period of thirty (30) days
from the date of original purchase by the original purchaser/owner. Luggie Scooter will repair or replace at our sole discretion to the original purchaser if the
LUGGIE or FREEERIDER plastic parts of the scooter upon examination by authorized Luggie Scooter, Inc.’s representative to be defective in material and/or
workmanship within the warranty period.

WARRANTY DOES NOT COVER NORMAL WEAR AND TEAR, SHIPPING DAMAGE, ALTERATIONS, MODIFICATIONS, MISUSE, NEGLECT OR ABUSE.
