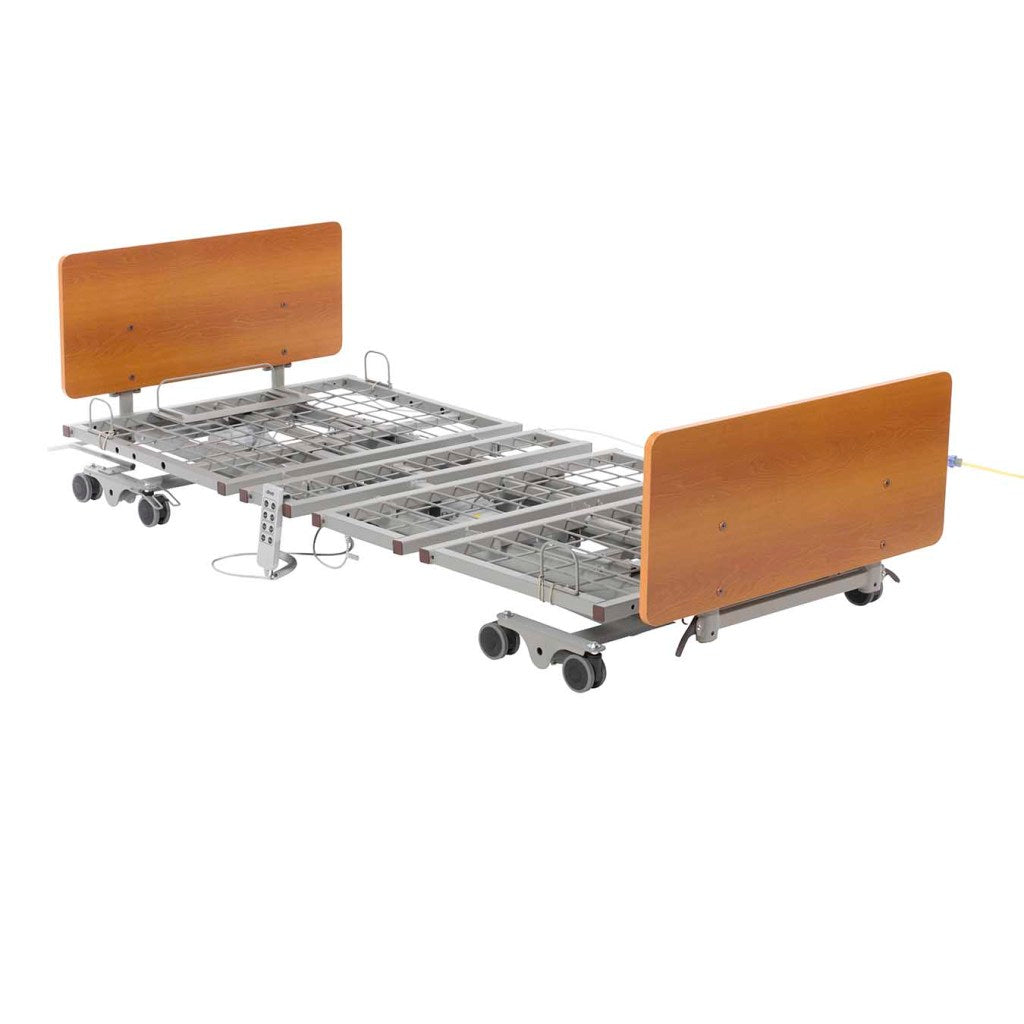

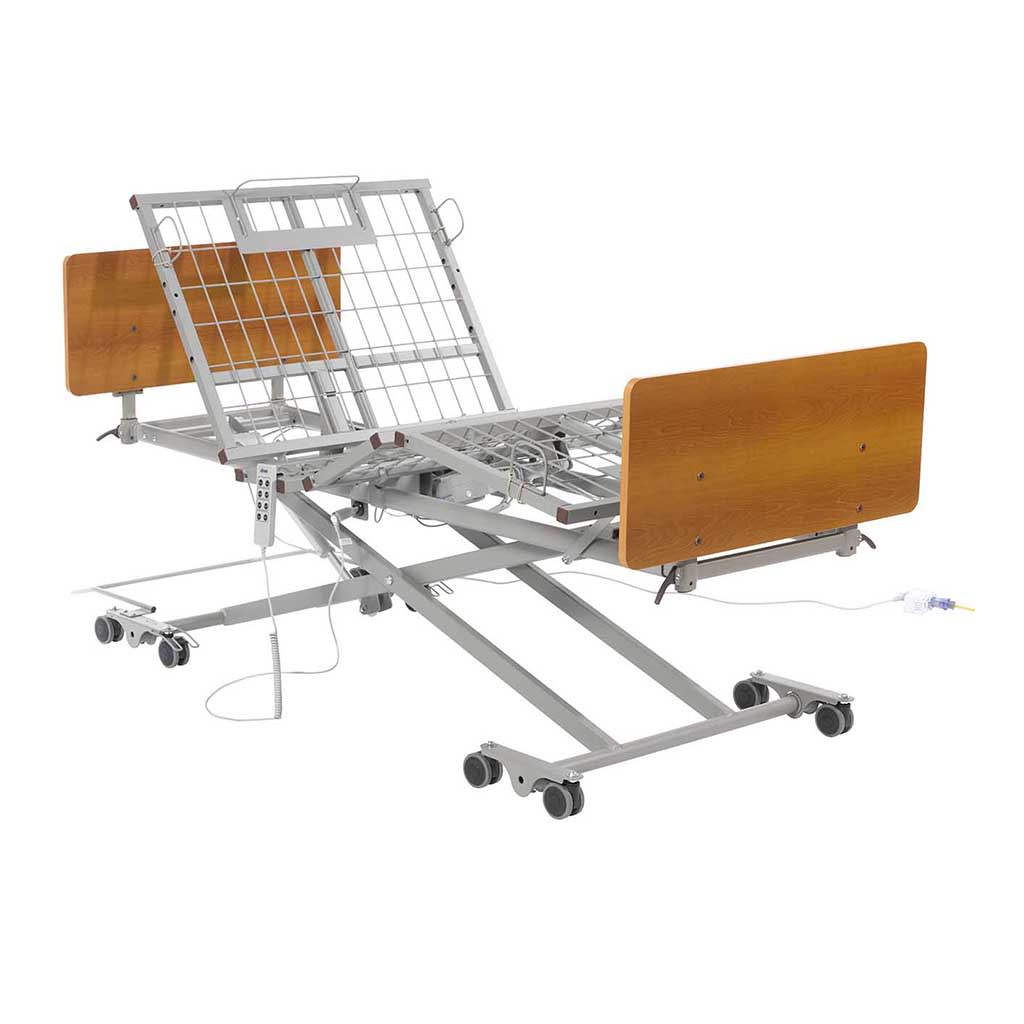

Drive Medical Prime Care P503 Bed

The Drive Medical Prime Care P503 Bed provides advanced long-term care support with a robust 450 lbs weight capacity and true vertical lift powered by three DC motors. Engineered for smooth and quiet height adjustments from 7.8 inches to 30 inches, it features four sealed bearings and an eight-function handheld pendant control with Auto Contour.

Equipped with integrated length extensions for 76-inch and 80-inch configurations, this bed offers adaptable resident positioning and reliable mobility. Eight 3-inch heavy-duty casters allow movement at any height, complete with four locking casters, two caster guide locks, and a fixed wall bumper to protect facility interiors.

Key Features

Brand	Drive Medical
Model	P503
Product Type	Long Term Care Bed
Weight Capacity	450 lbs
Resident Weight Capacity	425 lbs
Bed Height Range	7.8" - 30"
Product Weight	210 lbs
Integrated Bed Length	76" and 80"
Motors	3 DC Motors

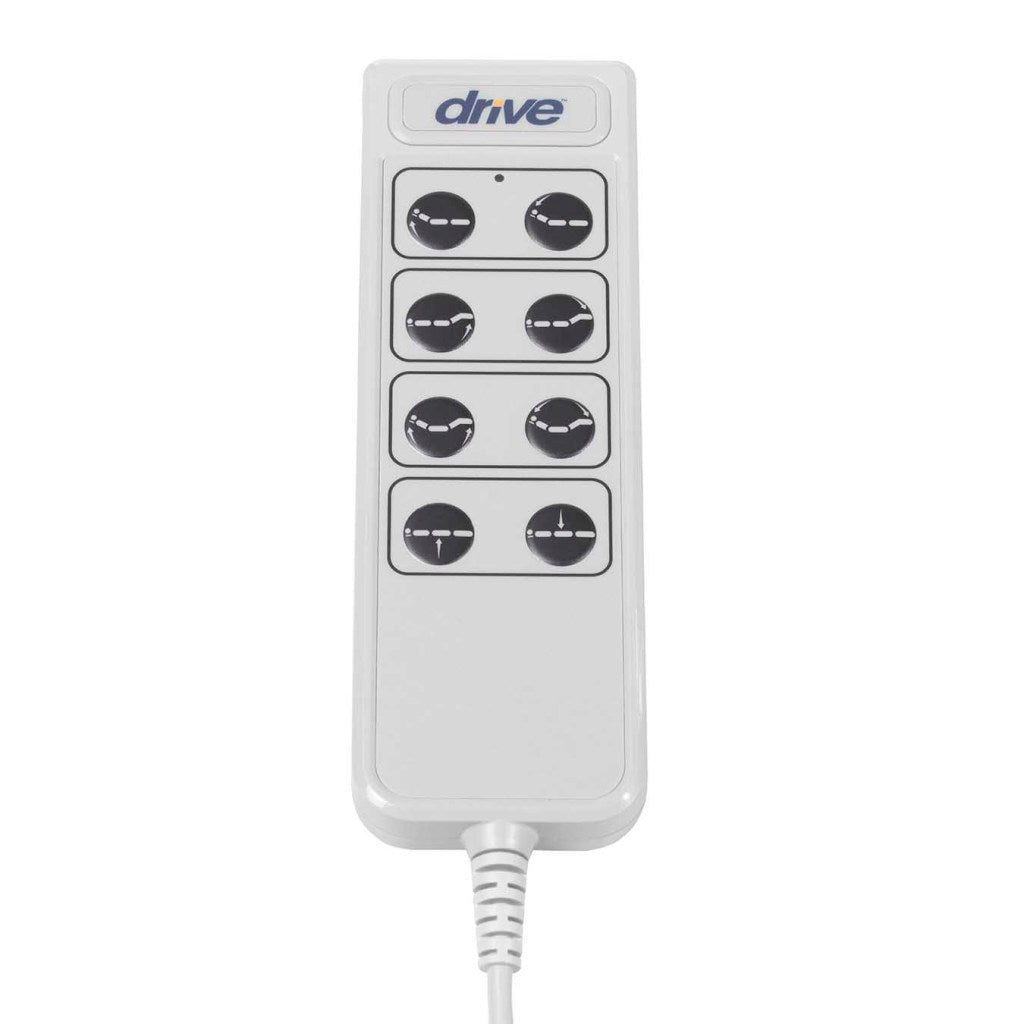

Hand Pendant	8-Function Handheld Pendant with Auto Contour
Casters	8 x 3" Heavy Duty (4 locking, 2 guide locks)
Wall Bumper	Fixed Wall Bumper
Warranty	10 Years on Frame, 15 Years on Welds, 2 Years on Electrical

Highlights

• 450 lbs. weight capacity, Resident Weight 425 lbs.
• Height range 7.8" to 30".
• Integrated 76" and 80" length extension.
• Eight-function handheld pendant control includes auto contour.

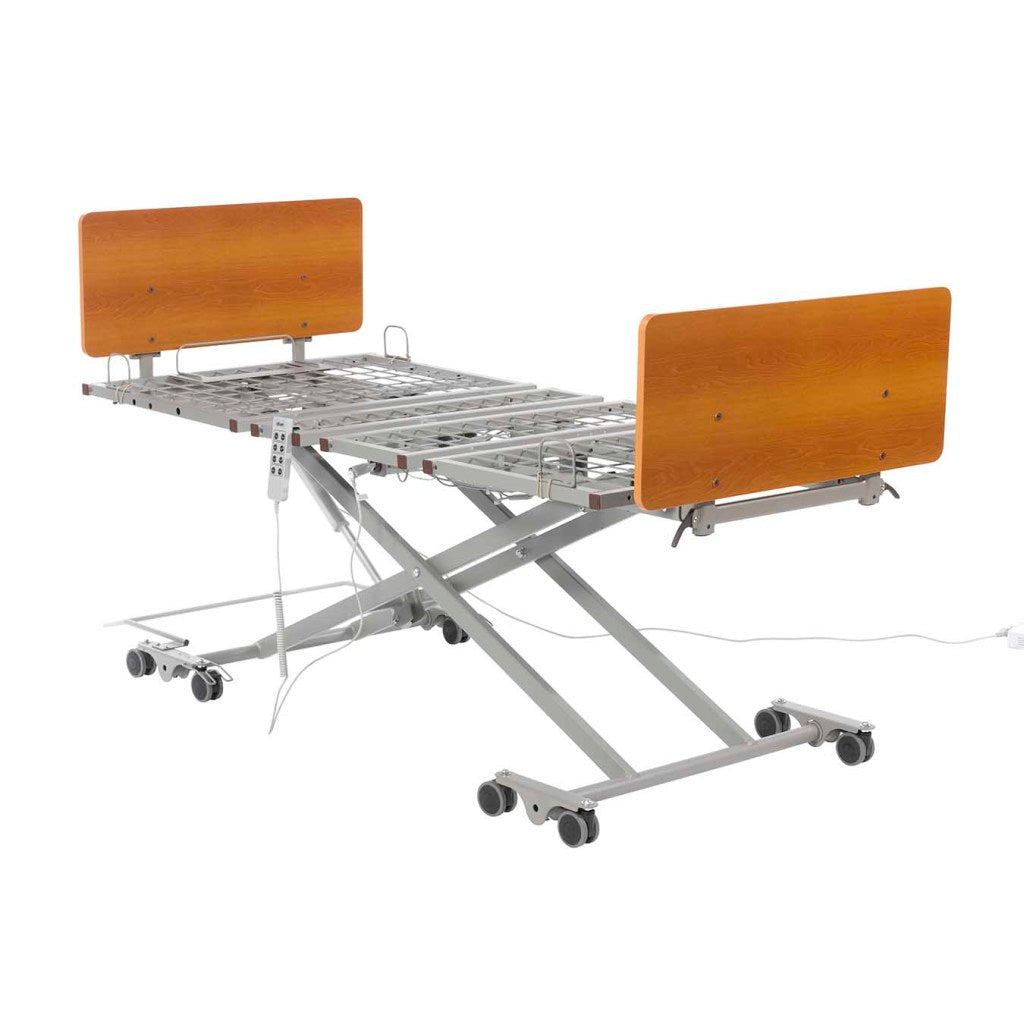

• Three DC motors maintain bed level with true vertical lift.
• Four sealed bearings for smooth and quiet lifting.

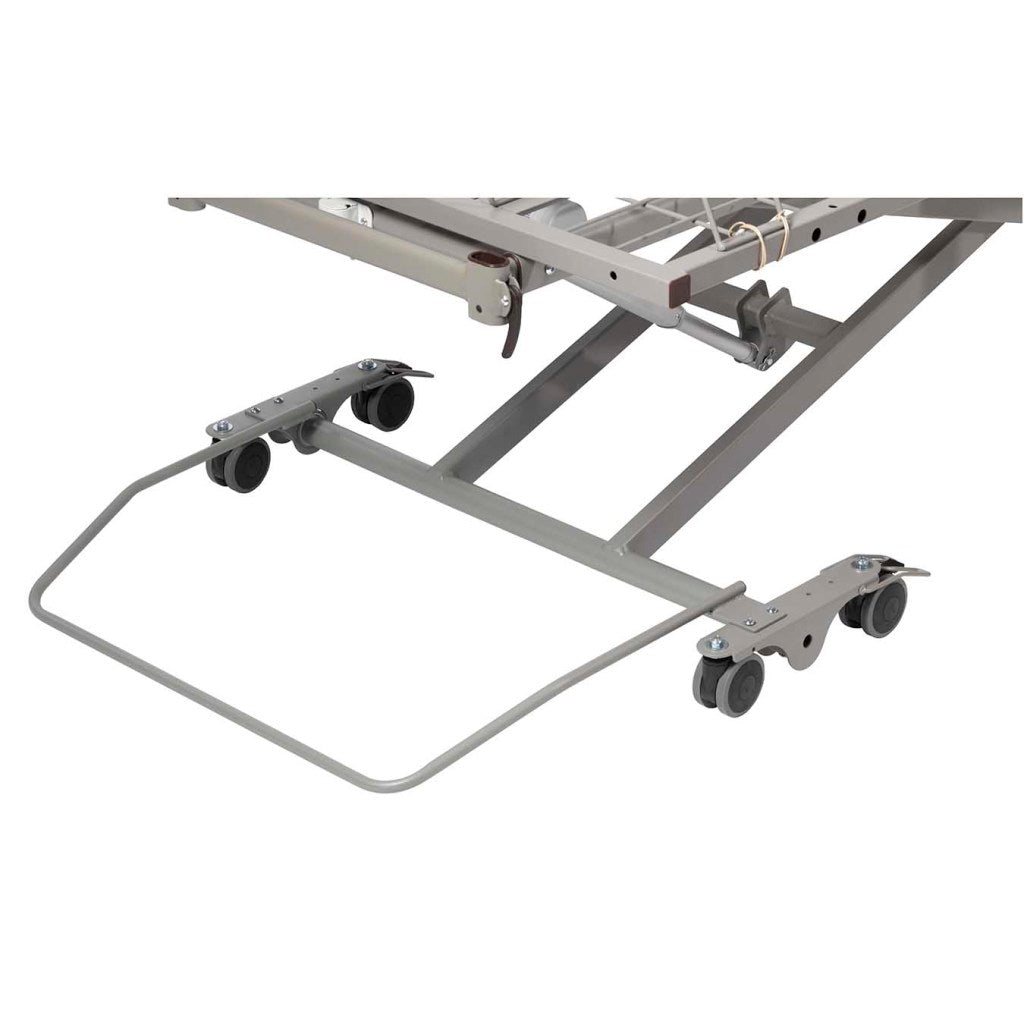

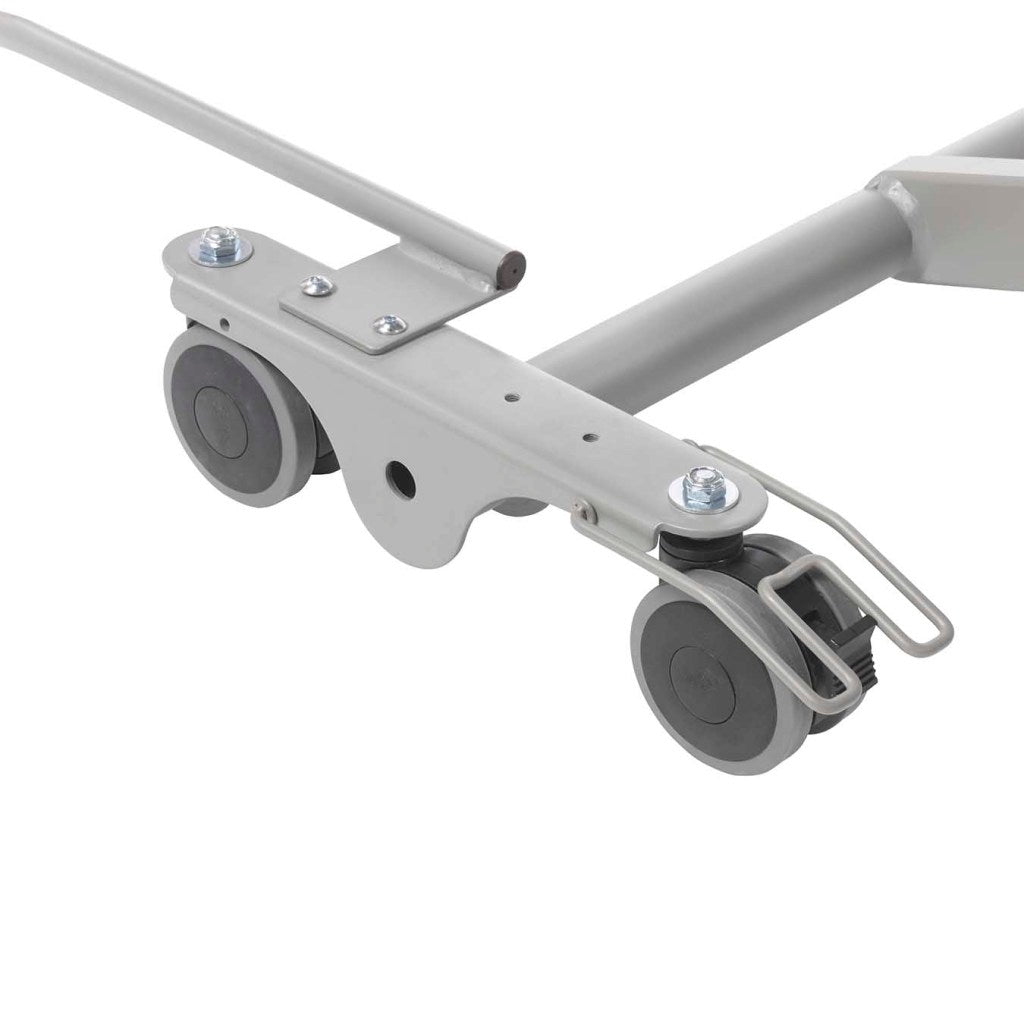

• Eight 3" heavy-duty casters roll at any height; includes 4 locking casters and 2 caster guide locks.
• Fixed wall bumper.
• Options:
• Assist rails, assist bars.
• Bed ends available in two styles and three wood grain laminate colors.

Sizing & fit

The bed features an integrated frame extension adjustable between 76 inches and 80 inches in length, with an operational vertical height range between 7.8 inches and 30 inches.

How to use

Operate the bed using the 8-function handheld pendant control to adjust bed height and utilize the Auto Contour feature. Maneuver the bed using the heavy-duty casters and engage the 4 locking casters and 2 caster guide locks to secure the frame in place.

Warranty

10 years on frame, 15 years on welds, 2 years on electrical components.

Downloads

• Owners Manual
• Parts Diagram

Frequently asked questions What is the weight capacity of the Prime Care P503 Bed? The bed has a total weight capacity of 450 lbs and supports a resident weight of up to 425 lbs. What is the height adjustment range for this bed? The bed elevates from a low height of 7.8 inches up to a maximum height of 30 inches. How does the motorized lift system operate? It utilizes three DC motors with four sealed bearings to provide smooth, quiet vertical lift and maintain a level surface. What warranty coverage is included with the bed? The bed includes a 10-year warranty on the frame, a 15-year warranty on welds, and a 2-year warranty on electrical components.
