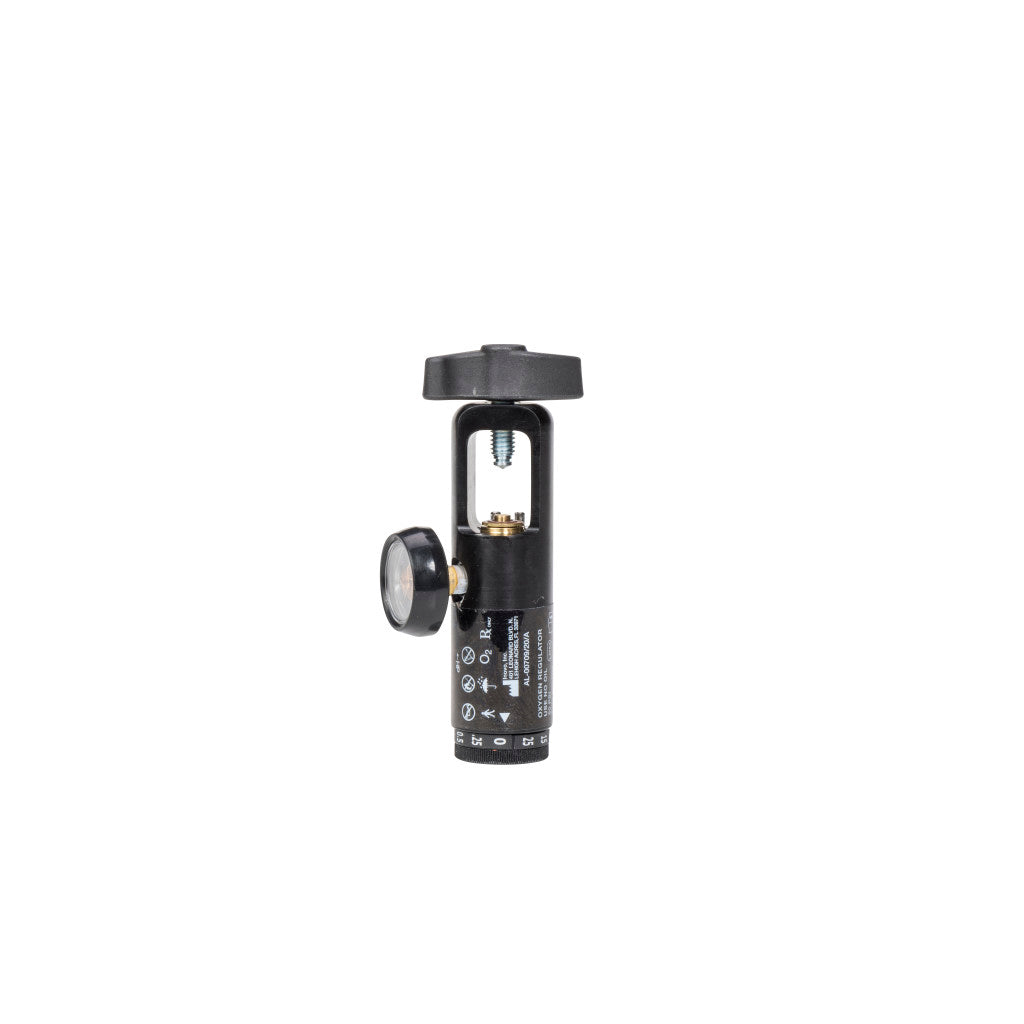

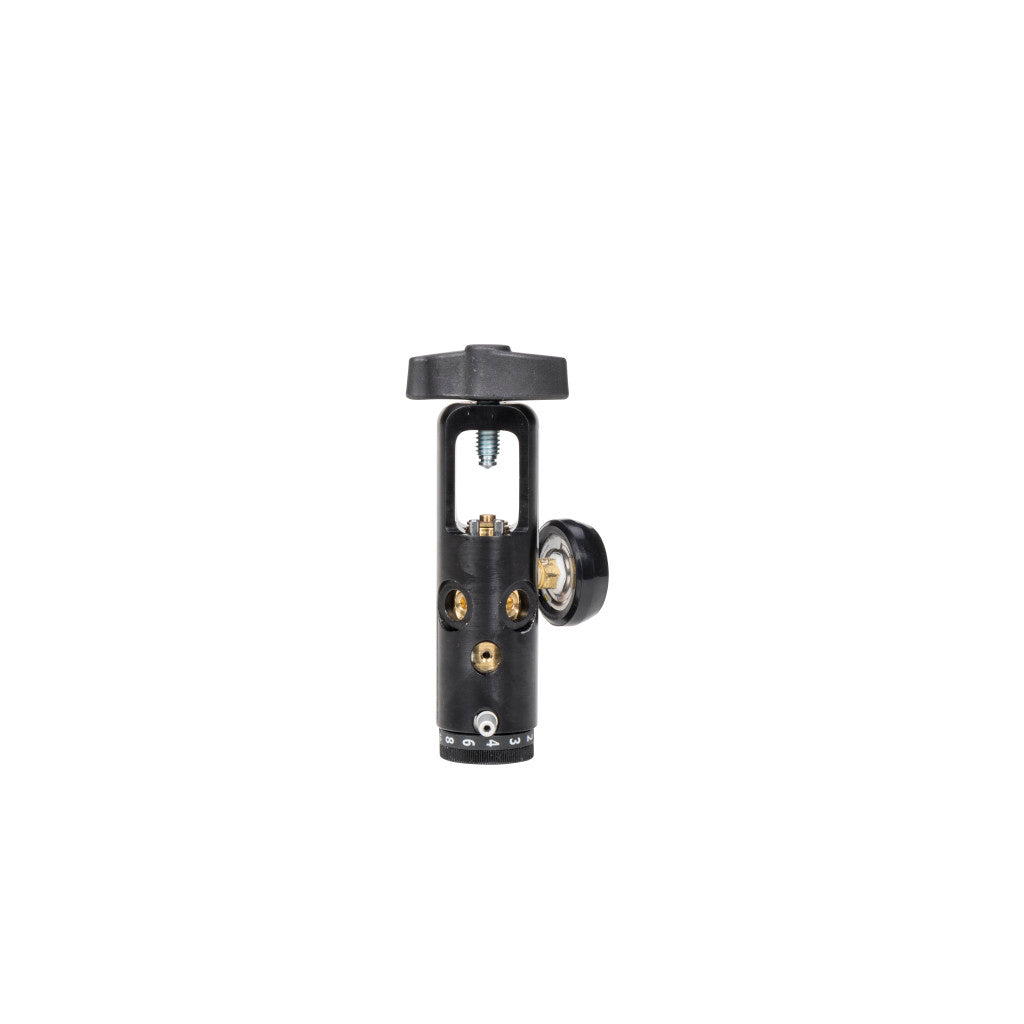

Drive Medical Inovo Brass-Core Oxygen Regulator CGA870

Drive Medical Inovo Brass-Core Oxygen Regulator CGA870

$125.00 USD
$125.00 USD
Sale Sold out
PTO Ports
In Stock
Typically ships within 1–3 business days
Want help choosing the right product or looking for bulk pricing?
Speak to our care team: (833) 422-7328
7 days a week, 8am–5pm PT

The Drive Medical Inovo Brass-Core Oxygen Regulator offers dependable and precise oxygen delivery for respiratory therapy needs. Designed with a robust brass core, it provides reliable flow control ranging from 0 to 25 LPM across 12 distinct click-style settings to accommodate diverse patient requirements.

Engineered for safety and durability, this regulator connects via a standard CGA 870 inlet and features a secure barb outlet. Tested to rigorous ASTM-G175-13 promoted ignition standards, it delivers consistent 50 psi outlet pressure and is assembled and tested in the USA.

Key Features

Brand Drive Medical
Product Type Oxygen Regulator
Connection Type CGA 870
Outlet Type Barb
Flow Rate 0.25, 0.5, 1.0, 2.0, 3.0, 4.0, 6.0, 8.0, 10.0, 15.0, 25.0 LPM
Liter Flow Settings 12 settings
Inlet Pressure 500 - 3,000 psi
Outlet Pressure 50 psi
Color Black
Expected Service Life 5 years
Ignition Test Standard ASTM-G175-13
Warranty 2-year limited warranty

Highlights

  • Can provide flow rates of 0 - 25 LPM
  • 12-position flow dial (0.25, 0.50, 1.0, 2.0, 3.0, 4.0, 6.0, 8.0, 10.0, 15.0, 25.0 LPM)
  • Meets ASTM-G175-13 promoted ignition tests
  • Inlet pressure: 500 - 3,000 psi
  • Outlet pressure: 50 psi
  • Outlet Type: Barb
  • Connection Type: CGA 870
  • 5 years expected service life
  • 2-year limited warranty
  • Assembled and tested in the USA

Compatibility

Compatible with oxygen cylinders equipped with a standard CGA 870 post valve connection and standard oxygen supply tubing attaching to a barb outlet.

Warranty

2-year limited warranty

Downloads

Frequently asked questions

What flow rates does this oxygen regulator support?

It provides 12 flow settings ranging from 0 to 25 LPM, specifically 0.25, 0.50, 1.0, 2.0, 3.0, 4.0, 6.0, 8.0, 10.0, 15.0, and 25.0 LPM.
What connection type is required for this regulator?

This regulator features a CGA 870 connection type with a barb outlet.
What are the operating inlet and outlet pressure ranges?

It accepts an inlet pressure between 500 and 3,000 psi and maintains a regulated outlet pressure of 50 psi.
What is the expected service life and warranty on this unit?

The regulator has an expected service life of 5 years and includes a 2-year limited warranty.

SKU: IN3625-R
