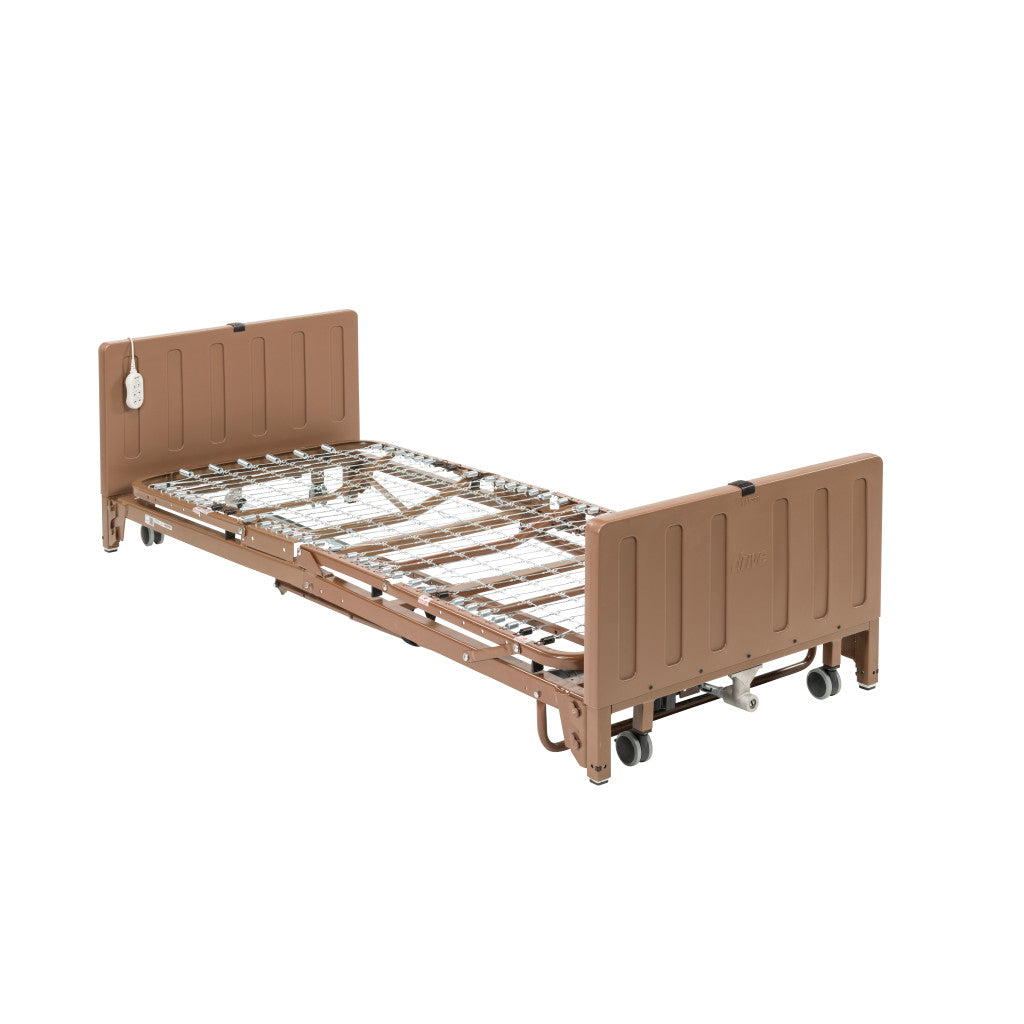

Drive Medical Full Electric Low Bed

The Drive Medical Full Electric Low Bed provides smooth, quiet position adjustments via an intuitive hand pendant, controlling head, foot, and overall height positioning. Designed for patient safety and caregiver convenience, it features an Auto-Contour function that simultaneously elevates the head and foot sections to minimize sliding and sacral shearing.

Built with a reinforced channel frame and zinc-coated spring deck, this low bed allows customizable caster configurations for rolling at low height or at any height. In case of power loss, top-mounted manual cranks ensure uninterrupted adjustment, while heavy-duty molded bed ends offer durable, easy-to-maintain performance.

Key Features

Brand	Drive Medical
Model Number	15005LP
Product Type	Full Electric Low Bed
Total Weight Capacity	450 lbs
Patient Weight Capacity	350 lbs
Product Weight	169 lbs
Shipping Weight	184 lbs
Deck Height (Roll at Low Height)	9.25 in to 23 in
Deck Height (Roll at Any Height)	14.81 in to 23 in
Sleep Surface Length	80 in
Frame Material	Reinforced Steel Channel
Deck Type	Zinc-Coated Spring Deck
Bed End Material	HD Polyethylene
Motor System	3-Motor Power Plant (UL Approved)
Certifications	UL Approved, ISO9001
Warranty	Limited Lifetime on welds, 5 year on frame, motor, pendant, 1 year on all other parts and components

Highlights

• Low deck height with flexibility to configure "roll at any height" or "roll at low height only" castor location
• Roll at any Height: 14.81" (376mm) to 23" (585 mm) deck height
• Roll at Low Height: 9.25" (235 mm) to 23" (585 mm) deck height

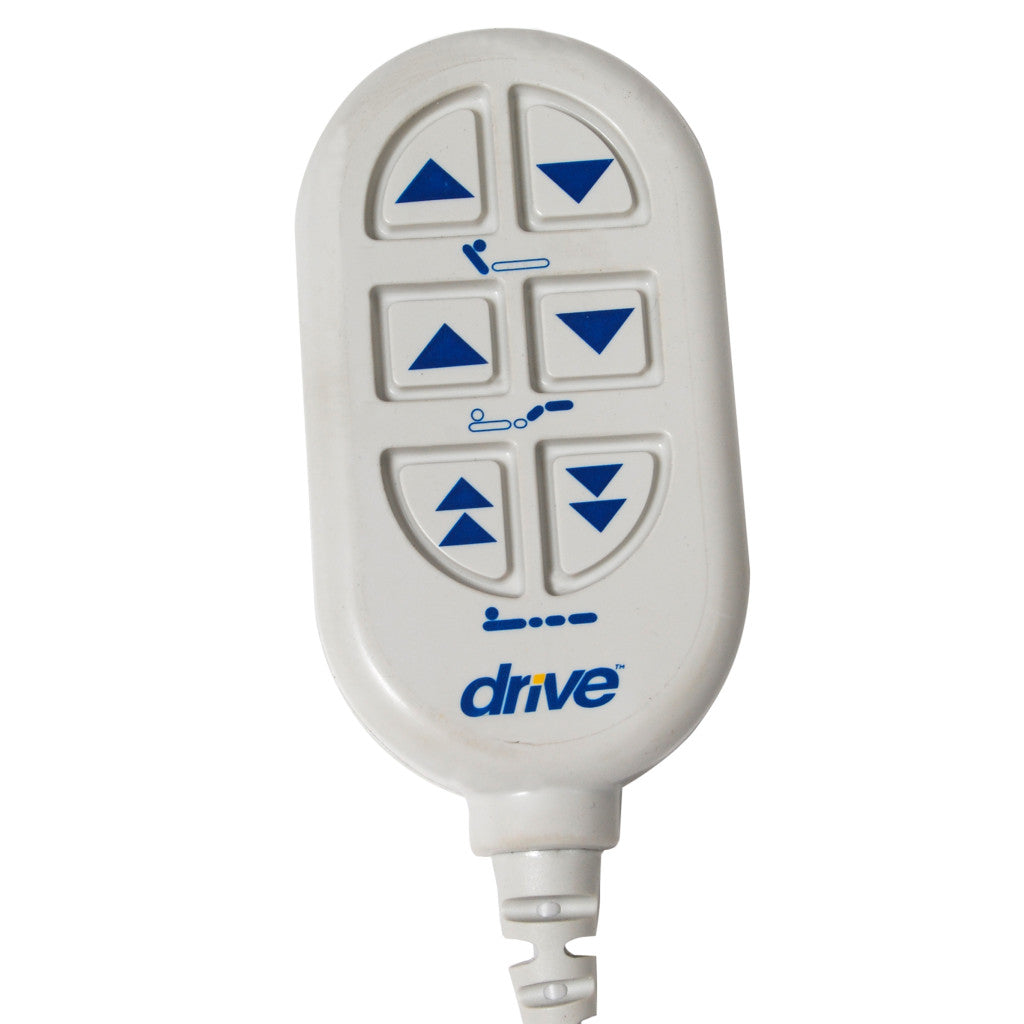

• Quiet, full electric operation provides smooth position change with hand pendant control of head/foot section positioning and overall height of the bed frame

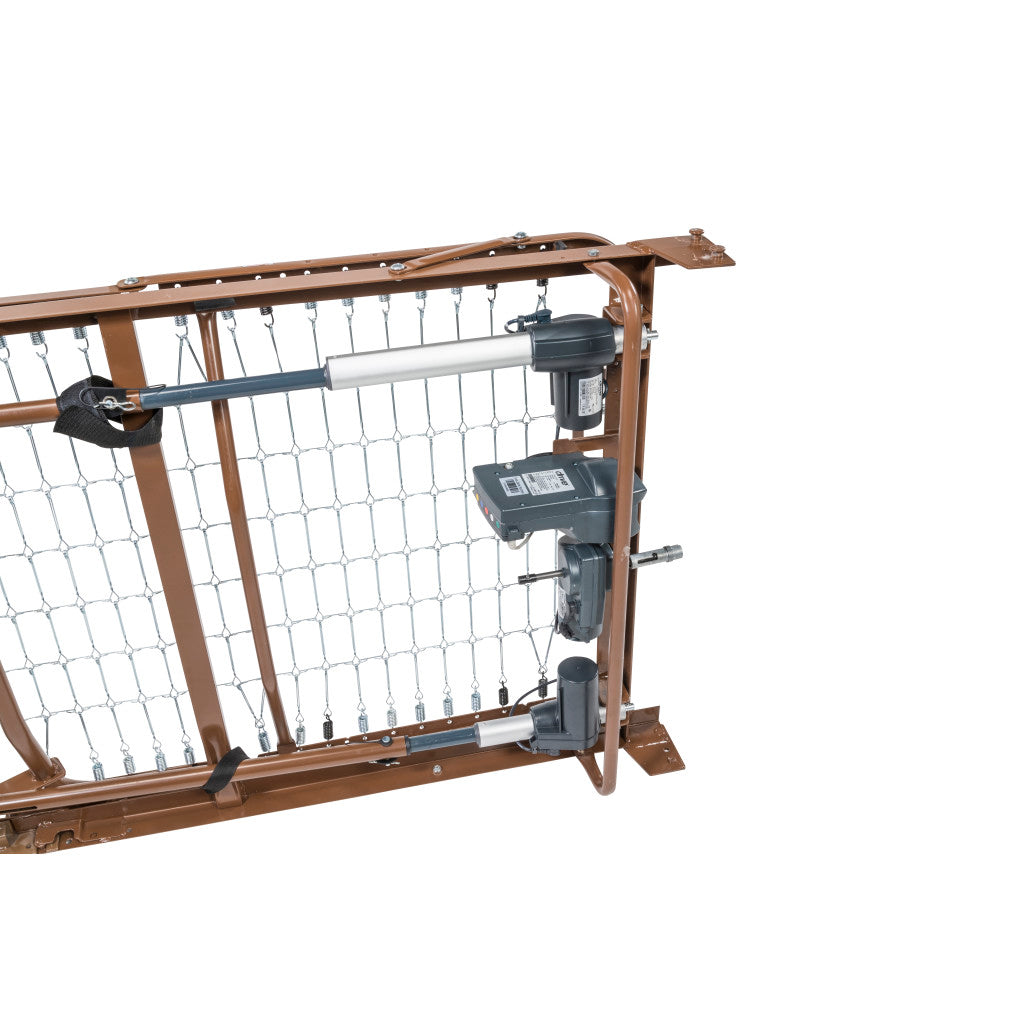

• Height-adjustment and head/foot deck motors come pre-installed on the foot section

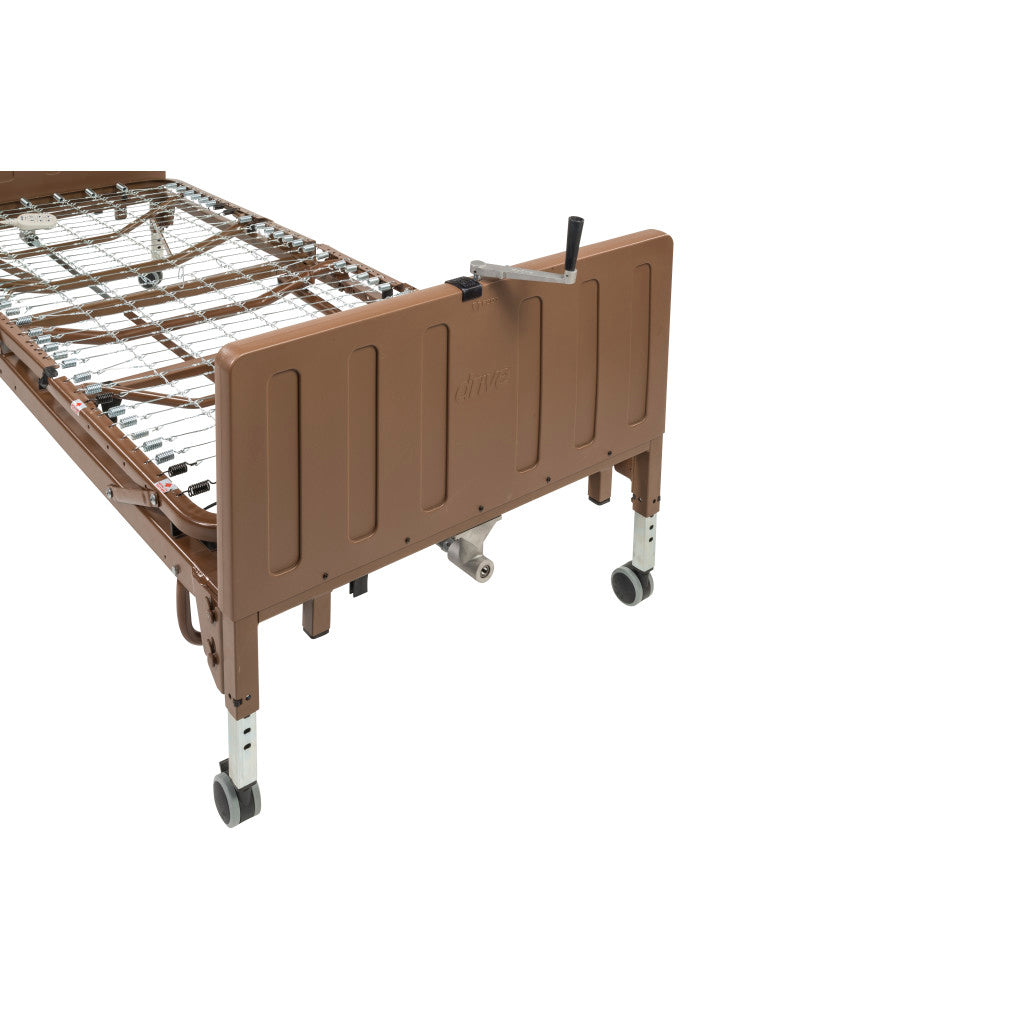

• In the event of power failure, top-mounted Hi/Lo crank accessibility and manual crank motor override of sleep surface adjustments
• Ships in two cartons
• Channel frame construction provides strength and reduced weight
• Reinforced frame resists twisting and bending
• Zinc-coated spring deck

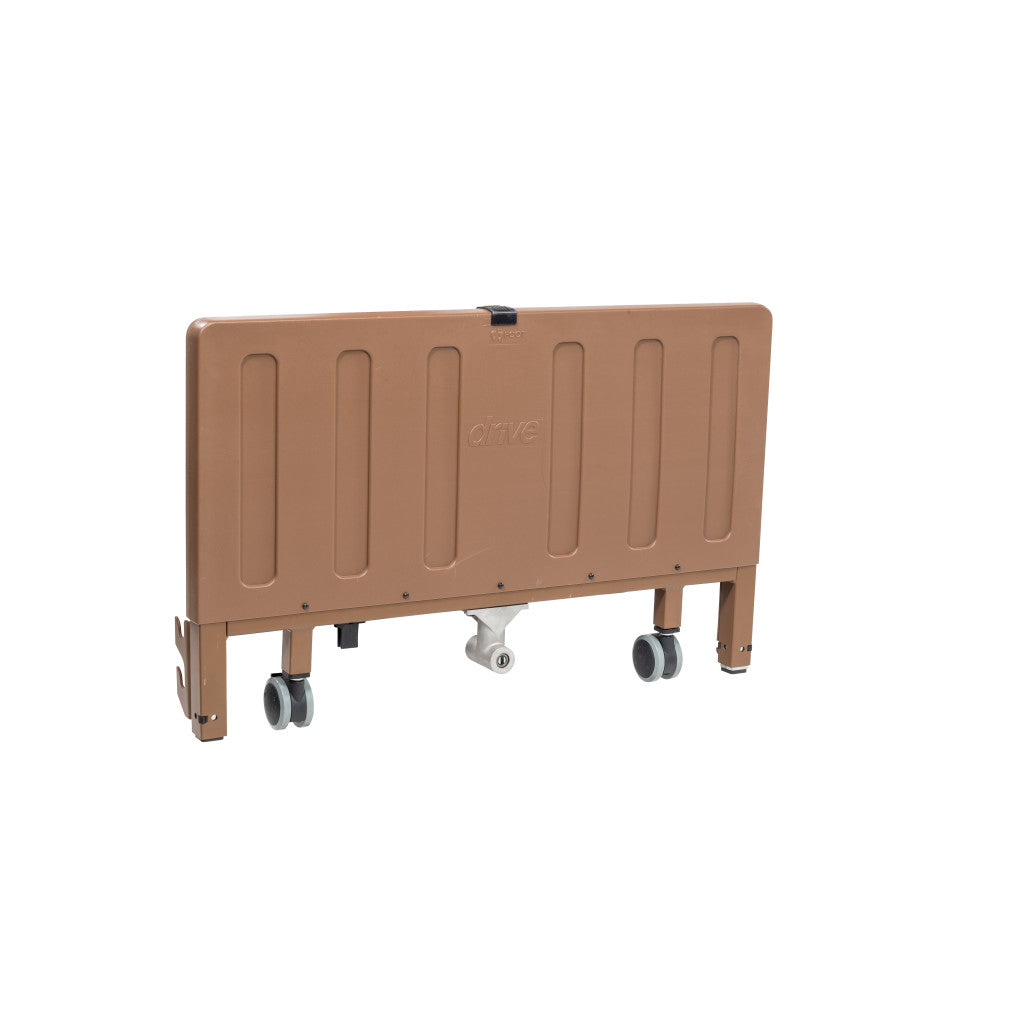

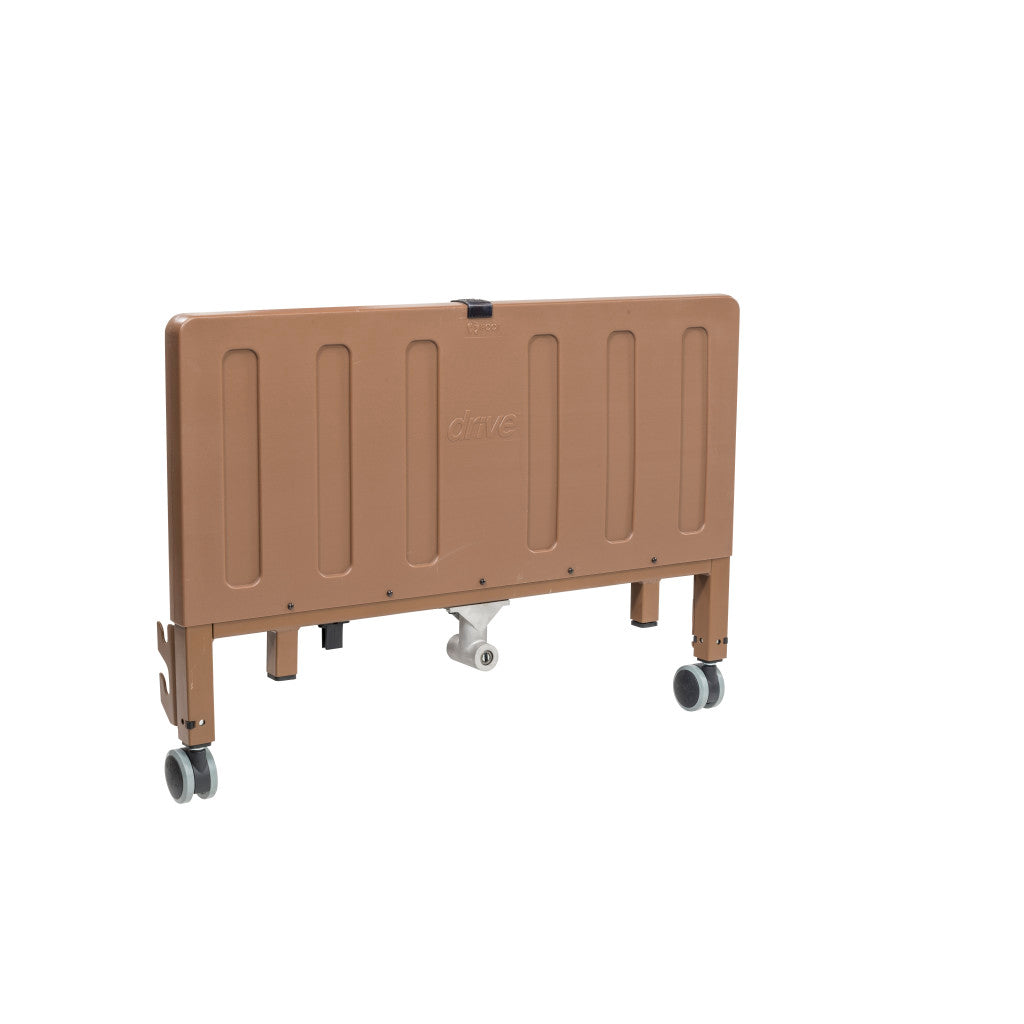

• Heavy-duty bed ends with durable HD Polyethylene molded bed end covers
• Headboard is taller than footboard

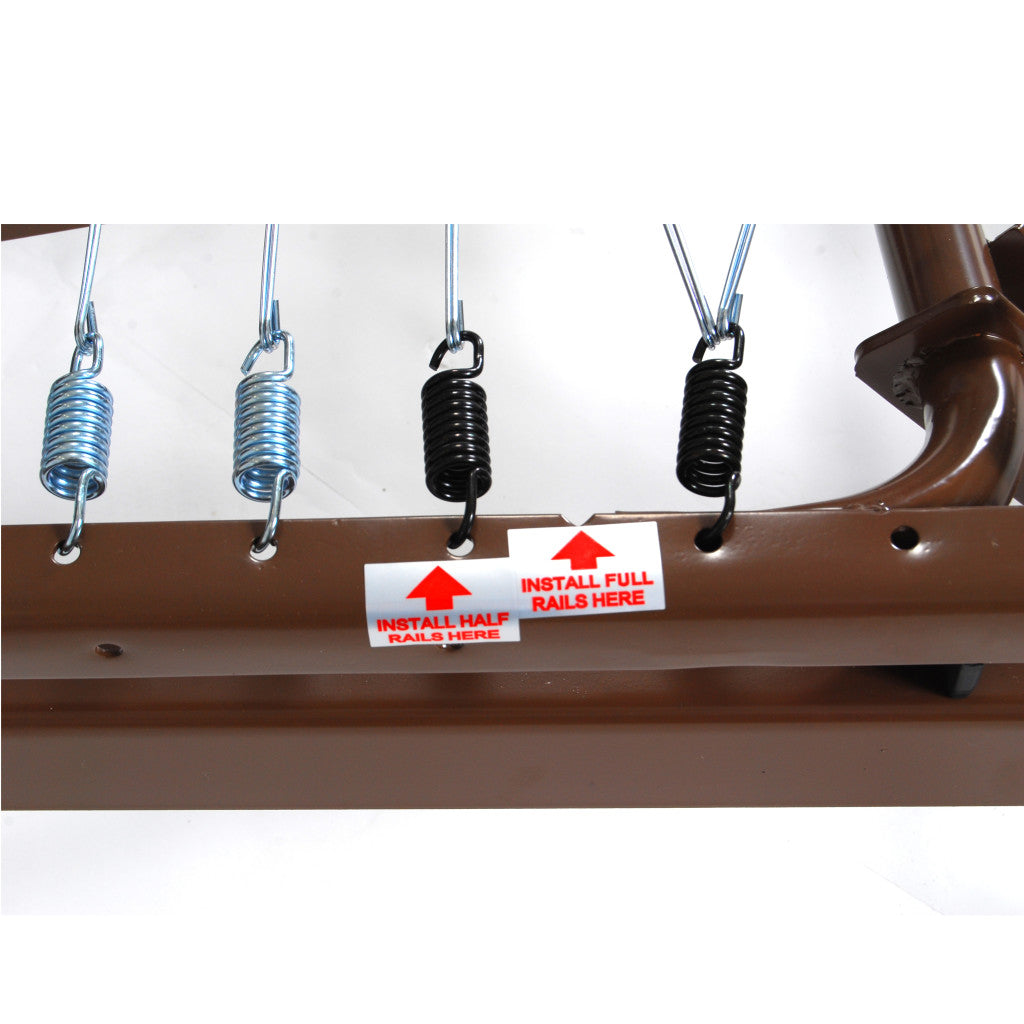

• Labels and color-coded springs help ensure accurate installation of side rails
• 3-motor power plant
• Half rails and full rails available in packages or sold separately
• Motor is UL Approved; bed is manufactured in ISO9001 facility
• Satisfies applicable FDA entrapment guidelines
• Extension kit available (model #15005EXTKIT-L) extends length from 80" to 84"
• Patient weight capacity: 350 lbs. (158kg). Total weight capacity: 450 lbs. (204kg), including occupant, mattress, rails, trapeze, accessories, and personal effects.
• Auto-contour raises the head and foot of the bed simultaneously to help prevent lower back and sacral shearing induced pressure injuries.
• Auto-contour may help prevent sacral shearing wounds by simultaneously elevating the head and foot bed sections to prevent sliding during position changes.
• Auto-contour allows patients to stay comfortably in place while being positioned for reading, watching television, or talking to visitors.

Compatibility

Compatible with standard 80-inch homecare mattresses, full or half bed rails, and the Drive Medical length extension kit (model #15005EXTKIT-L) to extend the sleep surface from 80 inches to 84 inches.

Warranty

Limited lifetime warranty on welds, 5-year warranty on frame, motor, and pendant, and 1-year warranty on all other parts and components. During the warranty period, defective items will be repaired or replaced at the manufacturer's option at no charge.

Downloads

• Owners Manual
• Parts Diagram

Frequently asked questions What is the weight capacity of this bed? The bed has a total weight capacity of 450 lbs, which includes the occupant, mattress, rails, and accessories. The maximum patient weight capacity is 350 lbs. How can the bed be adjusted during a power failure? In the event of a power failure, the bed features top-mounted manual crank accessibility and manual override for sleep surface adjustments. What are the adjustable deck height ranges? When configured to roll at low height, the deck adjusts from 9.25 inches to 23 inches. When configured to roll at any height, it adjusts from 14.81 inches to 23 inches. What does the Auto-Contour feature do? Auto-Contour simultaneously raises the head and foot sections of the bed to prevent patient sliding and help reduce lower back and sacral shearing pressure injuries.
