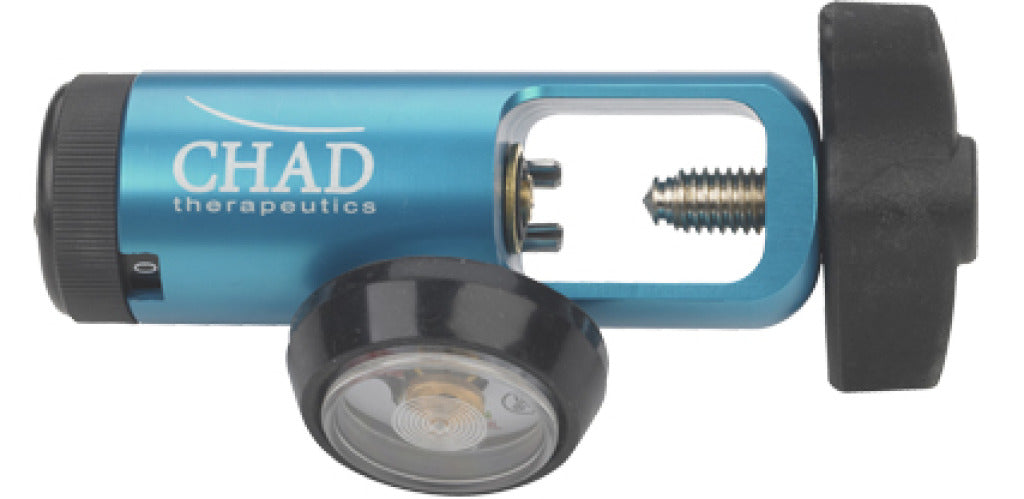

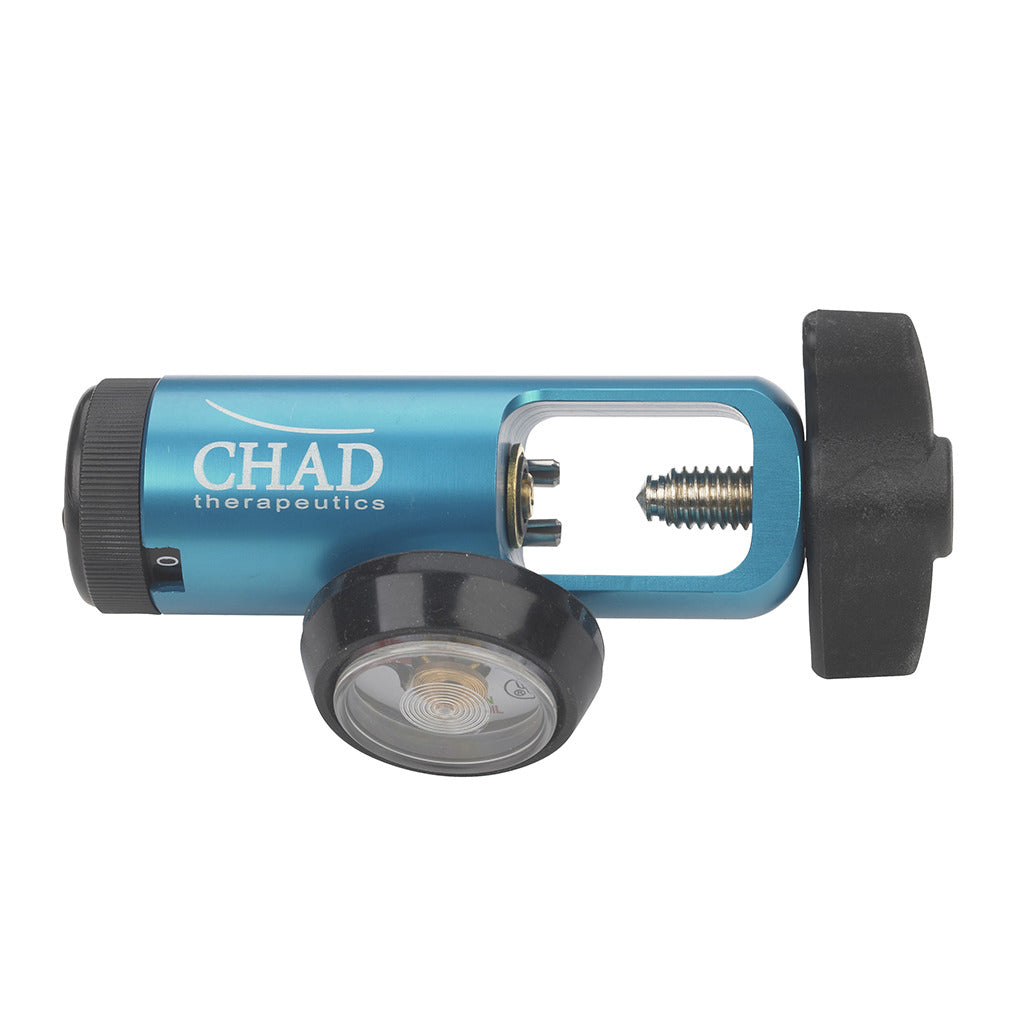

Drive Medical CHAD Click-Style Oxygen Regulator
Drive Medical CHAD Click-Style Oxygen Regulator
Couldn't load pickup availability
Speak to our care team: (833) 422-7328
The Drive Medical CHAD Oxygen Regulator is engineered for dependable flow control during respiratory therapy. Featuring a CGA870 connection and a standard barb outlet, it includes FDA-recommended viton and brass seal washers along with a 20-micron sintered-bronze inlet filter to optimize gas purity and safety.
Built to meet strict ASTM-G175-03 promoted ignition test standards, this regulator operates across an inlet pressure range of 500 to 3,000 PSI with a consistent 50 PSI outlet pressure. Each unit is 100% quality-control tested in the USA to ensure precise clinical performance and durability.
Key Features
| Brand | Drive Medical |
| Product Type | Oxygen Regulator |
| Connection Type | CGA870 |
| Outlet Type | Barb |
| Inlet Filter | 20-micron sintered bronze |
| Inlet Pressure Range | 500 – 3,000 PSI |
| Outlet Pressure | 50 PSI |
| Standards Met | ASTM-G175-03 |
| Warranty | Limited 2 Year |
Highlights
- 20-micron, sintered-bronze inlet filter
- FDA-recommended viton and brass seal washers
- Flow rate tolerances are as follows: +/- 20% for flows greater than 1.5 LPM +/- 30% for flows 1.5 LPM or less
- Meets ASTM-G175-03 promoted ignition tests
- Inlet pressure: 500 –3,000 PSI
- Outlet pressure: 50 PSI
- 100% QC tested
Compatibility
Compatible with medical oxygen cylinders requiring a CGA870 yoke connection and standard oxygen tubing with barb fittings.
Warranty
| Warranty |
|---|
| Limited 2 Year |
