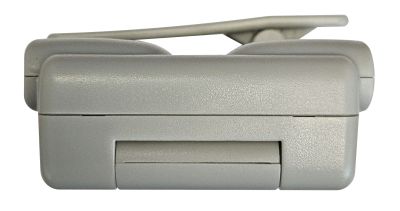

Biomedical Impulse TENS D5 Digital TENS Unit
Biomedical Impulse TENS D5 Digital TENS Unit
No reviews
Regular price
$78.99 USD
Regular price
Sale price
$78.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SKU # KIMTD5
Impulse TENS D5 Digital TENS/EMS Combination Device. The Impulse TENS D5 is a digital dual channel combination electrotherapy device. It incorporates transcutaneous electrical nerve stimulator (TENS) for pain relief and an electronic muscle stimulator (EMS) used for stimulating healthy muscles in order to improve and facilitate muscle performance. Includes: - Four (4) 2” x 2” Electrodes. - Two (2) Lead Wires. - Two (2) AA Alkaline Batteries. - One (1) Instruction Manual. - One (1) Carrying Pouch.
| Channels: | Dual |
|---|---|
| Electrodes: | 4 |
| Waveform: | Symmetrical biphasic square wave |
| Amplitude: | 0-100 mA (adjustable) |
| Pulse Rate: | 1- 120 Hz (adjustable) |
| Pulse Width: | 25 – 250 µS (adjustable) |
| Continuous: | Constant Stimulation |
| Pulse Rate Modulation: | Pulse Rate modulates from 100Hz down to 20Hz over a 15-second cycle (7.5 seconds down 7.5 seconds up; Pulse width is adjustable |
| Pulse Width Modulation: | Pulse width modulates from 125-250µS and backs down over a 5-second cycle (2.5 seconds down, 2.5 seconds up); Pulse Rate is adjustable |
|---|---|
| Burst I: | One second ON. One second OFF; Pulse Rate and Pulse Width are adjustable |
| Burst II: | Seven Pulses per burst; 2 bursts per second; Pulse Width is adjustable. |
| Power Supply: | 2 AA Batteries, Type LR6 |
| Size: | 4.2” x 2.9” x 1.4” (10.7 cm x 7.4 cm x 4 cm) |
| Weight: | 3.35 oz (94.97 grams) |
| Resistance Load: | Data was recorded across a 500-ohm resistance load |
| Warranty: | 2 Year Limited |
